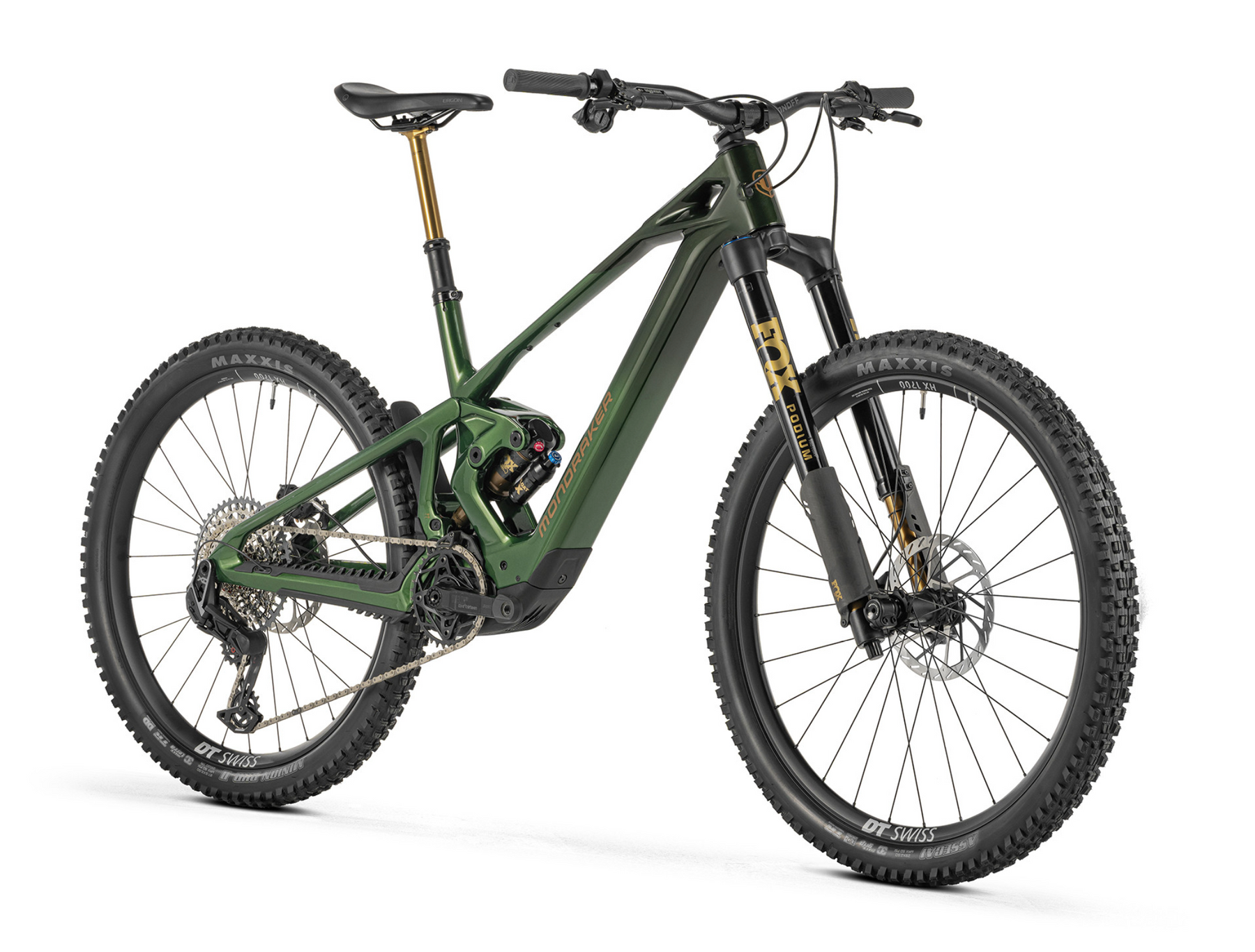

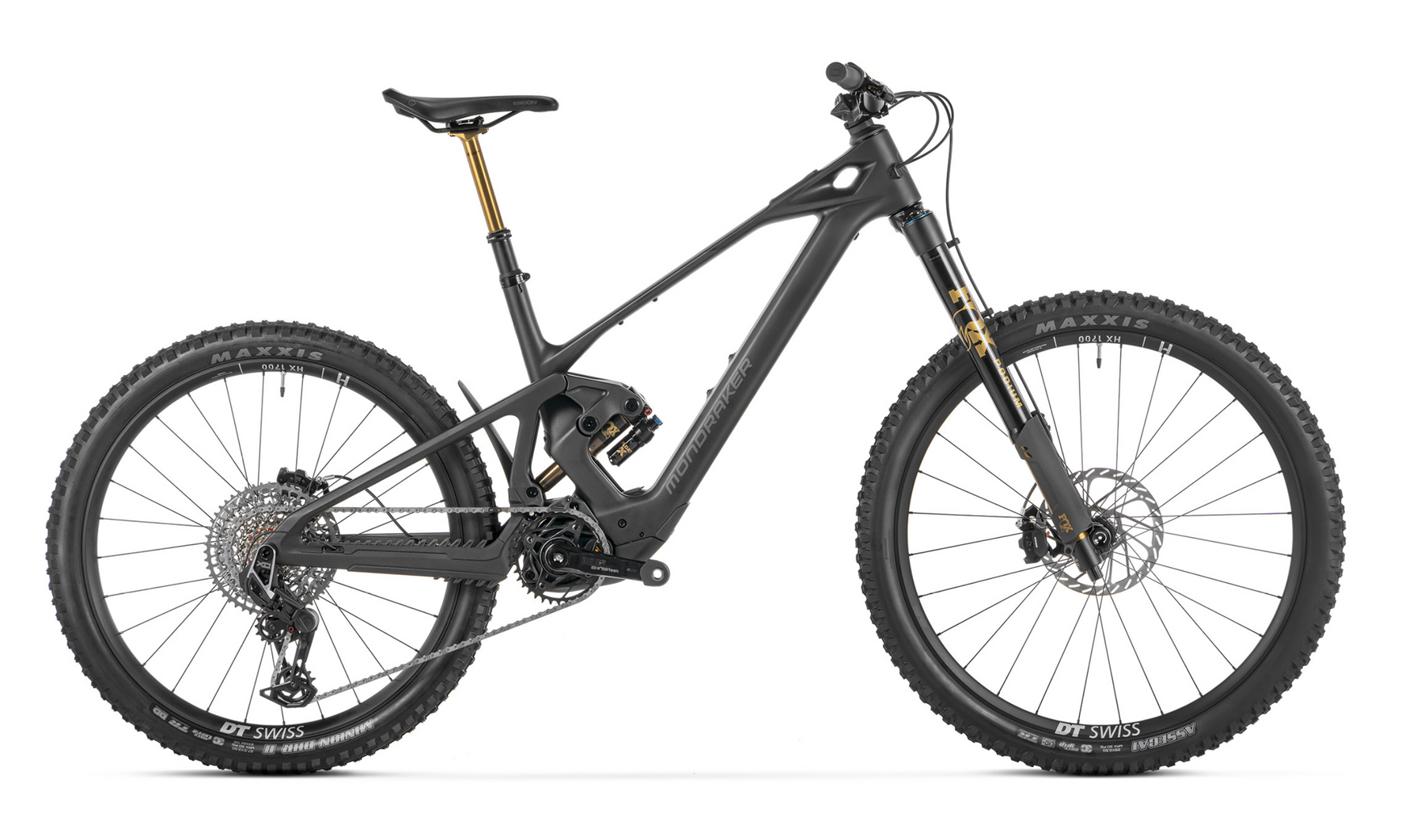

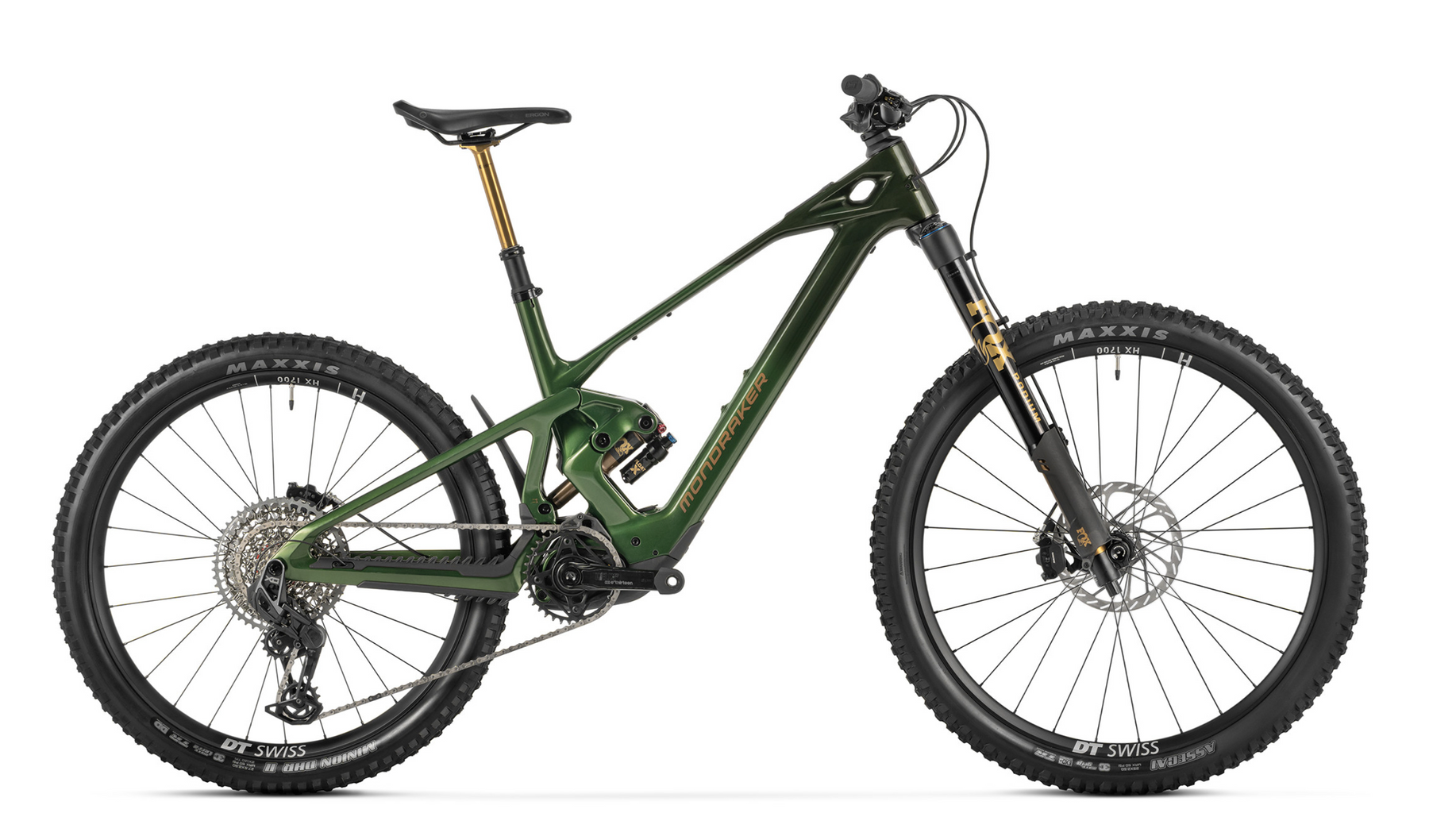

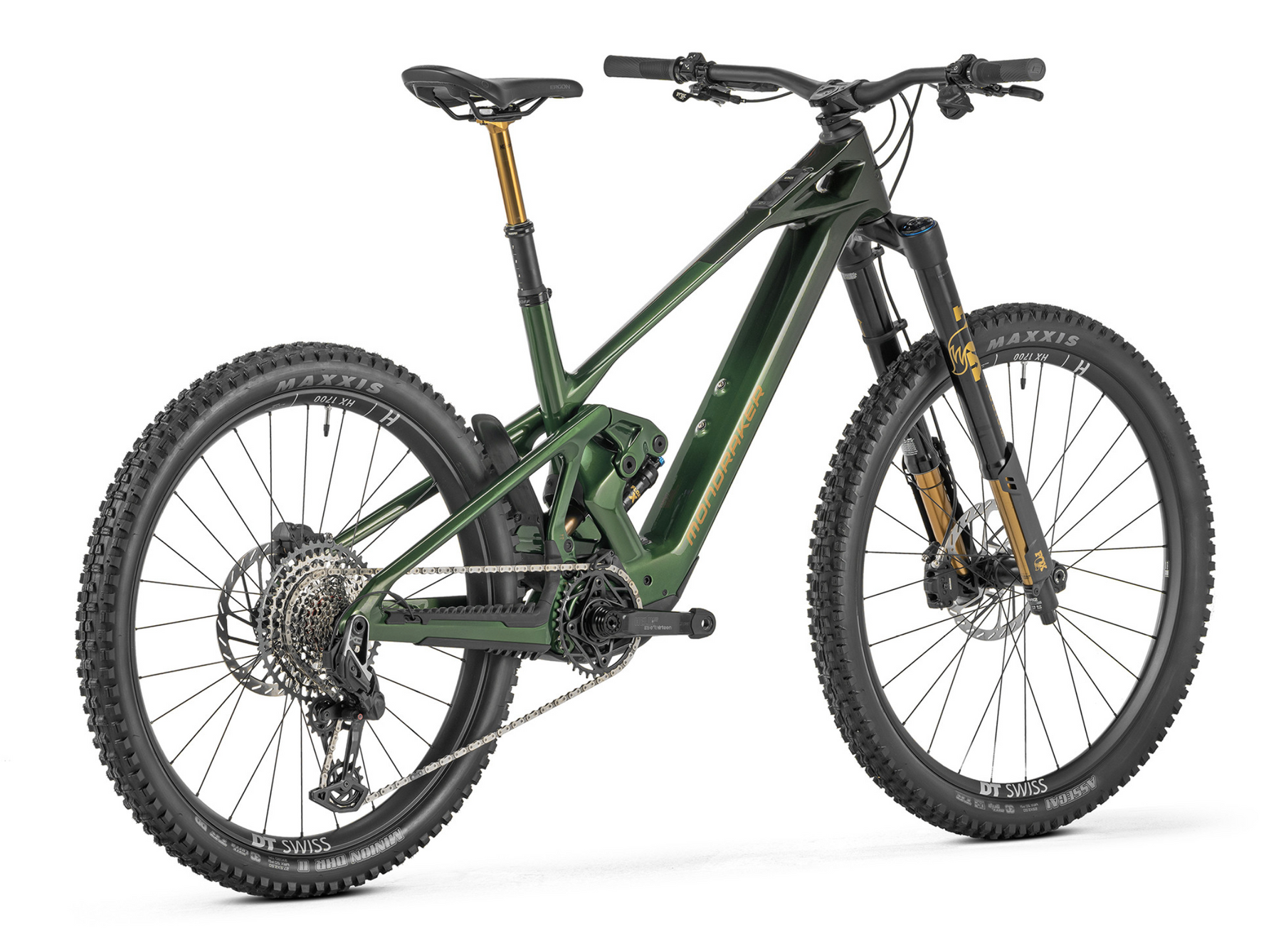

Discover the all-new ZENDIT

Mondraker's flagship e-MTB reaches new heights of performance thanks to an innovative frame design and ZERO suspension kinematics, with perfect integration of the powerful Avinox drive system.

Designed for aggressive riding on the most demanding climbs and descents, the ZENDIT is the result of over 11 years of e-MTB development, combined with the uncompromising approach of the Mondraker Factory Racing team.

The Zendit was created for those who see the mountain as a challenge, as a playground for pushing limits. A bike with character, energy, and an almost instantaneous response to every obstacle. When the slope steepens, speed increases, and the terrain becomes unpredictable – everything aligns. The Zendit unleashes its full potential.

Feel the freedom of smooth power and unparalleled performance. Approach every ride with the confidence and determination of being in total control, even in the most extreme situations.

STEALTH AIR CARBON — THE NEXT EVOLUTION

Rather than adapting an existing platform, the ZENDIT frame was designed from the ground up to accommodate the most advanced motor system on the market.

This frame is highly sophisticated, both in its design and manufacturing. For the first time, 6-axis CNC machines are used for drilling and finishing the frame, replacing manual finishing.

NEW SEALED BEARINGS

The ZENDIT leverages everything learned by the MFR DH team and uses the same pivot system as the new, already proven Summum DH frame.

With Enduro Max bearings of a single size on all pivots, maintenance is simplified. Two additional rubber seals extend bearing life.

SUSPENSION KINEMATICS

The ZERO suspension kinematics have been completely revised to match the power that the Avinox motor can deliver. Support is increased, and suspension action is more active, ensuring that the additional power translates directly to the trail.

A 36-tooth chainring enhances drivetrain durability, while optimized Anti-Squat values maintain a balanced and efficient ride with every pedal stroke.

Mondraker and Fox have collaborated closely to offer the ZENDIT the best rear suspension performance. The latest Fox Float X (RR and RR S models) and Fox Float X2 (XR model) shocks benefit from a specific tuning adapted to the bike's kinematics, maximizing performance and riding feel.

PROPORTIONS MATTER

As with other bikes with more than 150mm of rear travel, the ZENDIT comes standard with a mixed wheel setup — this offers the best overall performance for aggressive riding. But it can also easily switch to 29'' for even more climbing capability!

The ZENDIT offers proportional chainstays based on size:

• Sizes S, M, and M/L: 450 mm chainstay
• Sizes L and XL: 455 mm chainstay (+5 mm)

By slightly adjusting the pivot placement on each size, the same leverage ratio is achieved across the board. No matter your size, you benefit from the same riding qualities.

To switch to 29'', a lower flip-chip increases the chainstay length by 7 mm, with no effect on suspension kinematics. The bottom bracket height and key angles remain identical.

TECHNICAL SPECIFICATIONS

Frame: Zendit Stealth Air full carbon, updated Zero Suspension system, 165 mm travel, modern downhill-oriented geometry, integrated battery, Boost 12x148 mm rear axle, UDH hanger, tapered head tube, one-piece rocker link, HHG internal cable routing, high-capacity sealed bearings, oversize 15 mm axles, plastic motor protectors.

Sizes: S (380 mm), M (410 mm), ML (435 mm), L (460 mm), XL (490 mm).

Rear Shock: Fox Float X Factory Kashima Evol LV 205x65 mm, 2-position lever (open/closed), low-speed compression, low-speed rebound, adjustable air pressure, trunnion mount, 30x8 mm bushings.

Shock settings: Compression CS 30, bleed 1.1, rebound RL50, Rezi B40, LML, standard MCU, no volume spacer.

Fork: Fox Podium Float GRIP X2 Factory Kashima, 170 mm, tapered steerer, Boost 20x110 mm axle, 44 mm offset, high/low-speed compression and high/low-speed rebound adjustments, adjustable air pressure.

Headset: Acros ZS56/ZS56, 1-1/8" and 1.5" compatible, internal cable routing, sealing caps, no blocklock.

Stem: Onoff S9, 30 mm, 0° angle, full CNC aluminum, 31.8 mm diameter.

Handlebar: Onoff S9 carbon, 25 mm rise (38 mm on L/XL), 800 mm width, 8° backsweep, 5° upsweep, 31.8 mm diameter.

Grips: Onoff Desert Pro, CNC lock-on, 135 mm length, thicker version on L/XL.

Seatpost: Fox Transfer Factory Kashima internal, 31.6 mm diameter, adjustable travel depending on size (95 to 210 mm).

Saddle: Ergon SM10 E-Mountain black.

Front Brake: Sram Maven Silver, 4-piston 18 mm caliper, HS2 200 mm IS 6-bolt rotor, sintered metallic pads.

Rear Brake: Sram Maven Silver, same specifications as front.

Brake Lever: Sram Maven Silver with SwingLink system, bushing pivot, tool-free reach adjust.

Rims: DT Swiss HX 1700 Spline, welded aluminum, 30 mm internal width, tubeless ready, 28 spokes.

Spokes: DT Swiss Straightpull Hybrid III, black.

Front Hub: DT Swiss 350, Boost 20x110 mm, IS 6-bolt disc mount.

Rear Hub: DT Swiss 350 Classic with 24-tooth Ratchet, Boost 12x148 mm, IS 6-bolt disc, XD driver.

Front Tire: Maxxis Assegai 29x2.5 WT, tubeless ready, 3C MaxxGrip compound, EXO+ protection, 60 TPI, folding bead.

Rear Tire: Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DoubleDown protection, 120x2 TPI casing, folding bead.

Crankset: e*thirteen Helix Race e-spec aluminum, 155 mm crank arms.

Chainring: Sram Eagle 36-tooth T-Type, 104 BCD, steel, CL55.

Chain: Sram GX Eagle T-Type, 12-speed, Flattop, with Powerlock.

Rear Derailleur: Sram X0 Eagle AXS T-Type, 12-speed, high-end wireless electronic.

Shifter: Sram Eagle AXS Pod Controller Rocker Paddle, discrete clamp, 12-speed.

Cassette: Sram XS 1275, 10-52 teeth, T-Type, 12-speed.

Other: Sram AXS extension cable and Avinox 4A charger.

Weight: 22.9 kg.

Display: Avinox DP100 with BC100 left/right wireless controller.

Motor: Avinox M2S.

Battery: Avinox 800 Wh.
